Rammstein Air Electric Paint Booth Heater – 1 Phase

Paint Booths

SKU #1815982
Availability: Out of Stock
Price: $15,999.00
$15,999.00


The California Pulse electric heater system is a combination of a waterborne paint drying system and an electric heater. The system has four user selectable modes: Pre-Heat, Flash-Off, Spray and Bake.

1. The system heats the booth during Pre-Heat to warm up a cold vehicle.

2. Spray Mode is a non heated mode that uses shop air at shop temperature.

3. The heated Flash-Off mode is used to dry waterborne finishes.

4. The finish coat is baked on during Bake Mode.

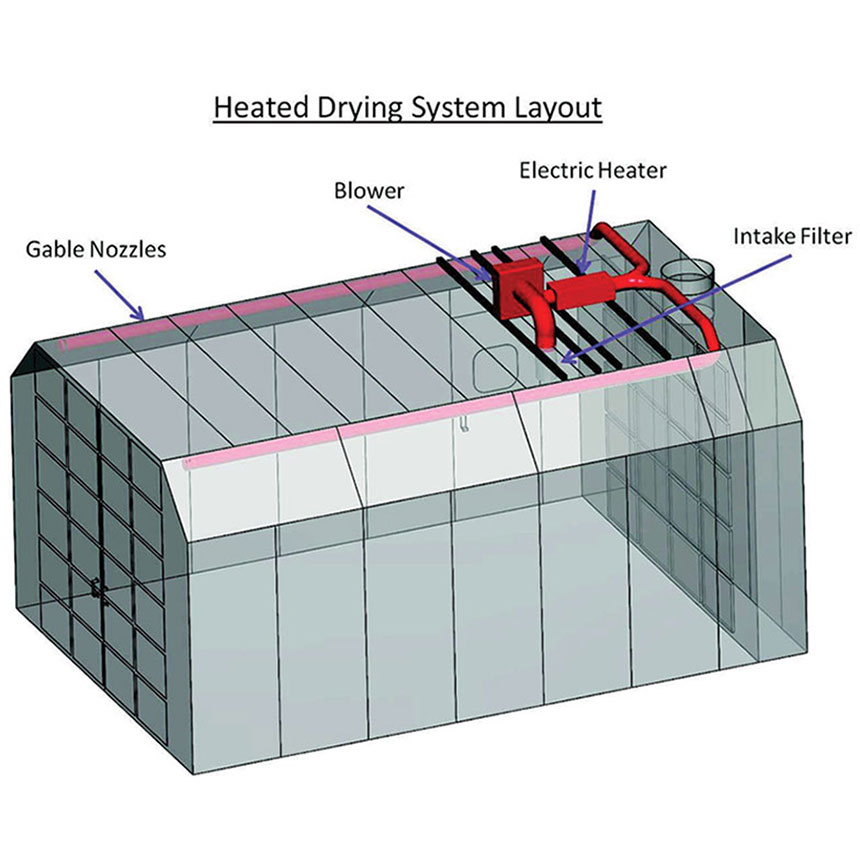

The blower takes air from the spray booth cabin. The heating element is installed in front of the blower. The system heats the air from the blower and delivers it into the cabin through the nozzles mounted in the gable area of the booth.

The system operates based on the fact that paint can be sprayed at relatively low air temperatures. Even during cold days, the shop air temperature is high enough for spraying especially if the vehicle can be pre heated. The electric heater system can easily heat up the spray booth to reach the desired flash- off temperature of waterborne finishes. The system is also effective in creating a high enough temperature for baking the finish coat on.

Patent Pending Ventilation Technology
Our patent pending ventilation technology makes it possible to use a very small amount of energy to produce outstanding temperature rise values. The standard 30kW system provides a 45F-50F temperature rise in about 40-45 minutes.

Cost of Operation
The standard heater is a 30Kw unit. If the cost of 1Kwh electricity is $0.12 then the cost of heater operation for a cycle is only about $1.80-$2.10. This is significantly less than the cost of a refinishing cycle in a booth that uses a gas fired heater.

System Components

  • intake filter
  • ducting package
  • 2hp blower
  • control panel (Non listed panel is standard. UL508 listing is an option.)
  • 30kW electric heater
  • exhaust VFD (supplied by installer)

System Specifications Control panel:
Blower Motor 2HP / 08VAC or 230VAC / 1Phase / 6.3A
Heating Element 30KW / 208VAC or 230VAC / 3 Phase / 85A
Temperature Rise Approx. 30°F in 10 Minutes / 50°F in 50 Minutes
Ship Weight 560 lbs
SB Model Usage Cross Flow, Side Down & Semi Down
