iDEAL Scissor Frame Machine FR-55

Frame Racks

SKU #1816082
Availability: Out of Stock
Price: $17,503.00
$17,503.00

FREE Shipping in the Contiguous 49 United States.
All others will be contacted with shipping costs before order is processed.

Unique, Compact & Versatile Design

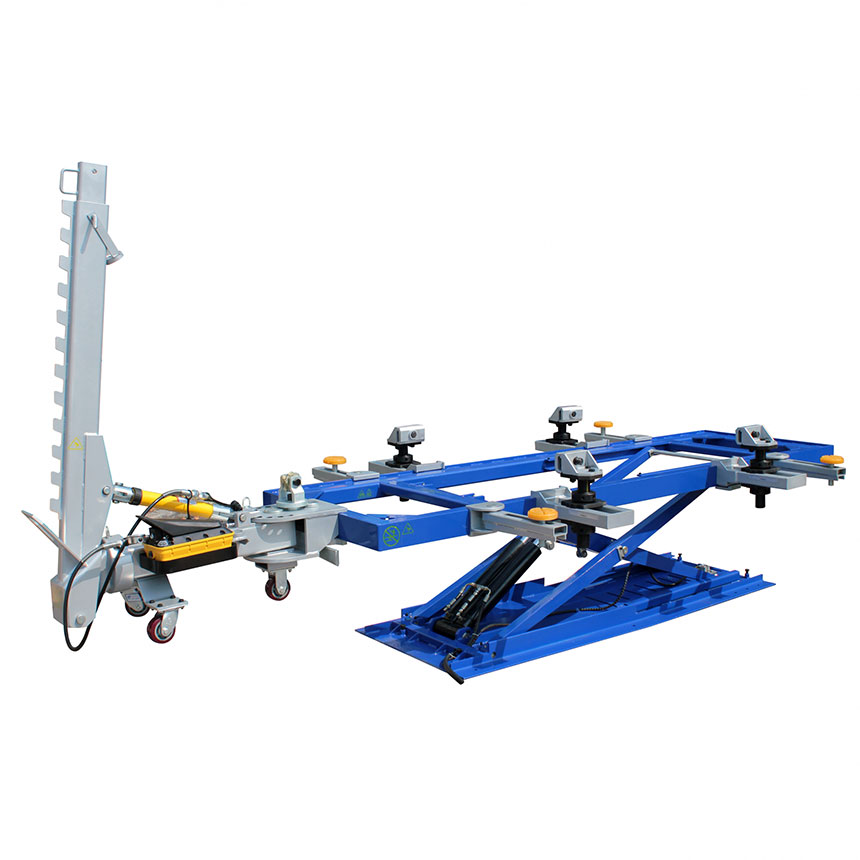

The FR-55 Scissor Lift & Frame Rack is a unique, high quality, compact frame straightening machine with the versatility of an automotive lift, designed to service Full-frame or Uni-body type vehicles with its 5,500 lb. lifting capacity. The FR-55 incorporates a 10 Ton 'multi-angle/adjustable height' Pull Tower with 360 degree pulling capability, along with adjustable height Clamping assemblies and universal positioning Swivel Arms & Lift Pads. The FR-55 also comes standard with Pull Chain with Hook and Wheel Stands.

Key Features of the iDEAL Scissor Frame Machine:

  • Scissor Style Operation with 5,500lbs. Capacity
  • Simple Console Operation for Raising and Lowering
  • Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
  • 10 Ton Pulling Tower with Down Pull Roller
  • Quick Disconnect Hydraulic Fittings
  • 10′ Pulling Chain with Hook
  • High Quality Air/Hydraulic Pump with Pressure Gauge
  • Universal Wheel Stands
  • Powder Coat Finish

Specifications

  • Deck Design: Scissor Lift
  • Deck Length: 173.25"
  • Deck Width: 37"
  • Deck Height: 4.75" – 63"
  • Pull Force Per Tower: 10 Ton
  • Hydraulic Pressure: 10,000 PSI
  • Required Air Pressure: 100 – 120 PSI
  • Lifting Capacity: 5,500 lbs
  • Power: 220VAC – 20 AMP, 1PH
  • Ship Weight: 3,105 lbs

Ships by truck freight. Forklift required at time of delivery.
