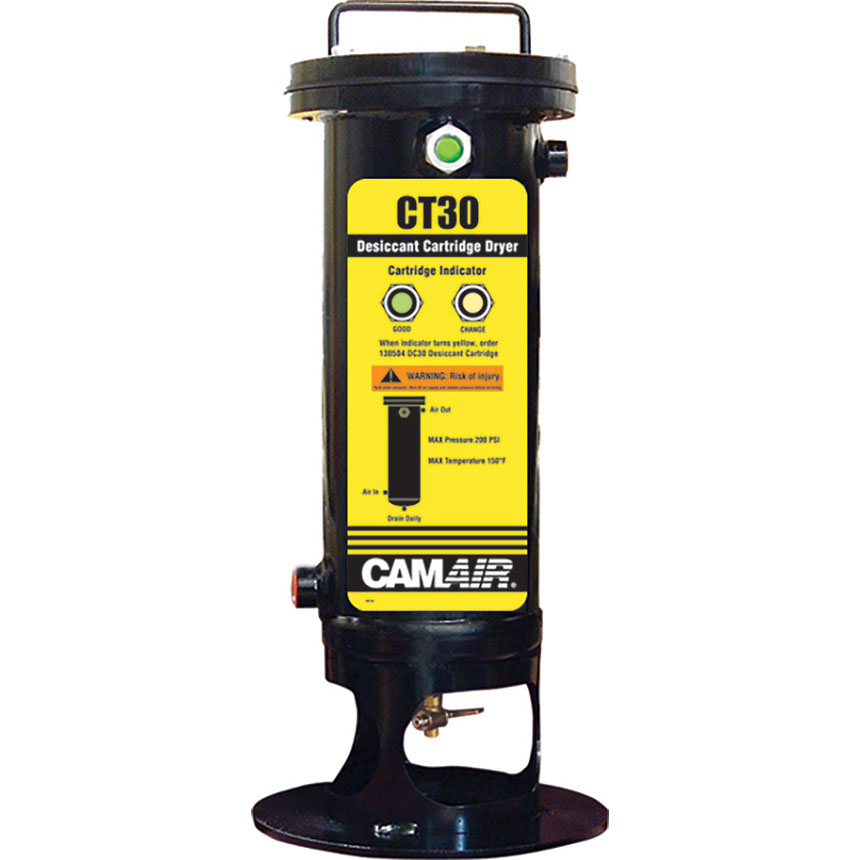

The DeVilbiss CAMAIR CT30P is a portable desiccant air dryer and filter system designed primarily for high-quality automotive spray painting and pneumatic applications.
Key Technical Specifications
- Airflow Capacity: Handles up to 30 CFM.
- Moisture Removal: Dries compressed air down to a -40°F dew point to eliminate water vapor.
- Filtration Level: Removes solid particulates and oil aerosols down to 0.01 microns using built-in fiber media. This eliminates the need for separate coalescing or final filters.
- Desiccant Weight: Utilizes a quick-change 10 lb. bagged desiccant cartridge.
- Connections: Features standard 1/2" Female NPT inlet and outlet ports.
- Portability: The "P" in CT30P denotes that it includes an integral floor stand base, allowing it to be easily moved around a shop.
Operational Features
- Visual Indicator: Includes a built-in, color-changing indicator window that shifts color to signal exactly when the desiccant cartridge needs replacement.
- Zero Down-Time Maintenance: Designed with a quick-release configuration so the 10 lb. desiccant bag can be swapped out cleanly and fast without handling loose desiccant beads.
