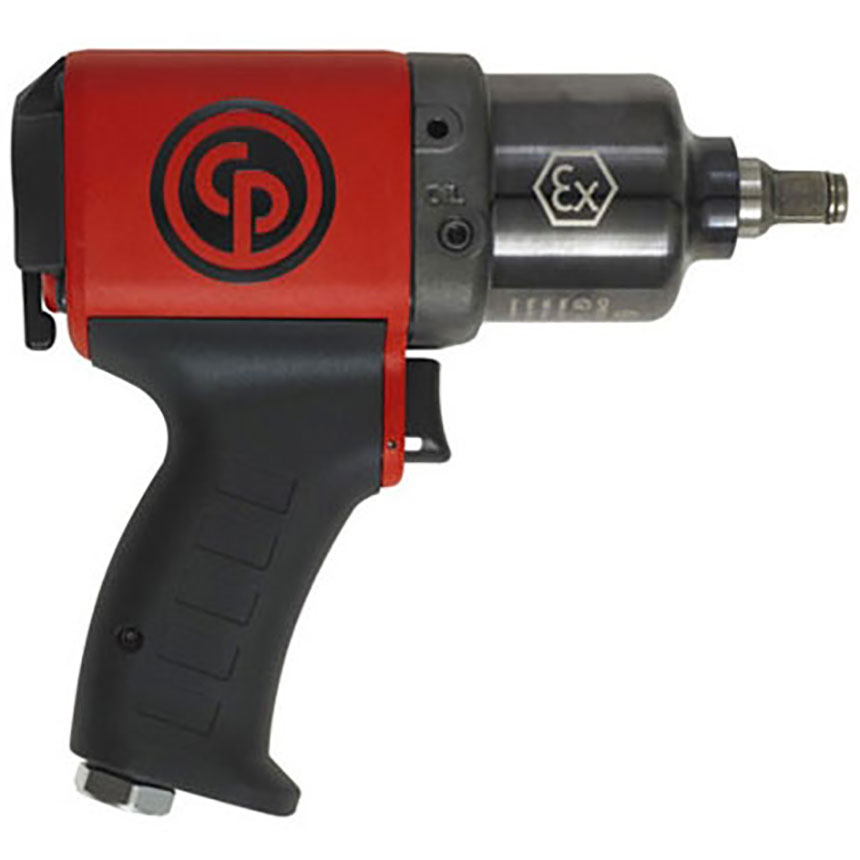

Chicago Pneumatic 1/2" Atex Impact Wrench - CP6748EX

Chicago Pneumatic

SKU #1809430
Availability: In Stock
Price: $574.95
$574.95

Providing the ultimate performance, the Chicago Pneumatic 1/2" Atex Impact Wrench - CHP - CP6748EX gives you the superior quality you need for highly intense usage. Its compact design and light weight make it great for your comfort during long periods of use and allow it to withstand years of wear.

Adding to the durability of the tool is a reliable double-dog clutch in oil bath sheltered in a durable steel housing. Its power regulator has four settings and a one-hand reverse functionality. During use of the tool, you will enjoy comfortable handling with a rubber grip on composite housing.

Product Specifications

  • Handle type: Pistol
  • Square drive: 1/2"
  • Working torque range (fwd): 180-760 nm ,130-560
  • Maximum torque (reverse): 1085 nm, 800 ft-lbs
  • Free speed: 8400 rpm
  • Blows per minute: 1200
  • Net weight: 2.4 kg/5.4 lb
  • Power/weight ratio: 452.1 nm/kg, 148.1 ft.lb/lb
  • Length: 7.9"
  • Side to center: 1.4"
  • Actual air consumption: 30cfm
  • Air inlet thread size: 1/4"
  • Min. hose size: 10mm, 3/8"
  • Noise level: 93 db(A)
  • Sound power: 104 db(A)
  • Vibration α (ISO-28927-2): 8.7 m/s²
  • Vibration K (ISO-28927-2) : 2.2 m/s²
  • Socket retainer: Friction ring
  • Clutch type: Twin hammer/oil bath
  • Bolt size: M20, 3/4"
  • Bolt dimensions: 75 x 220 x 230 2,9 x 8,7 x 9,1



WARNING WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
