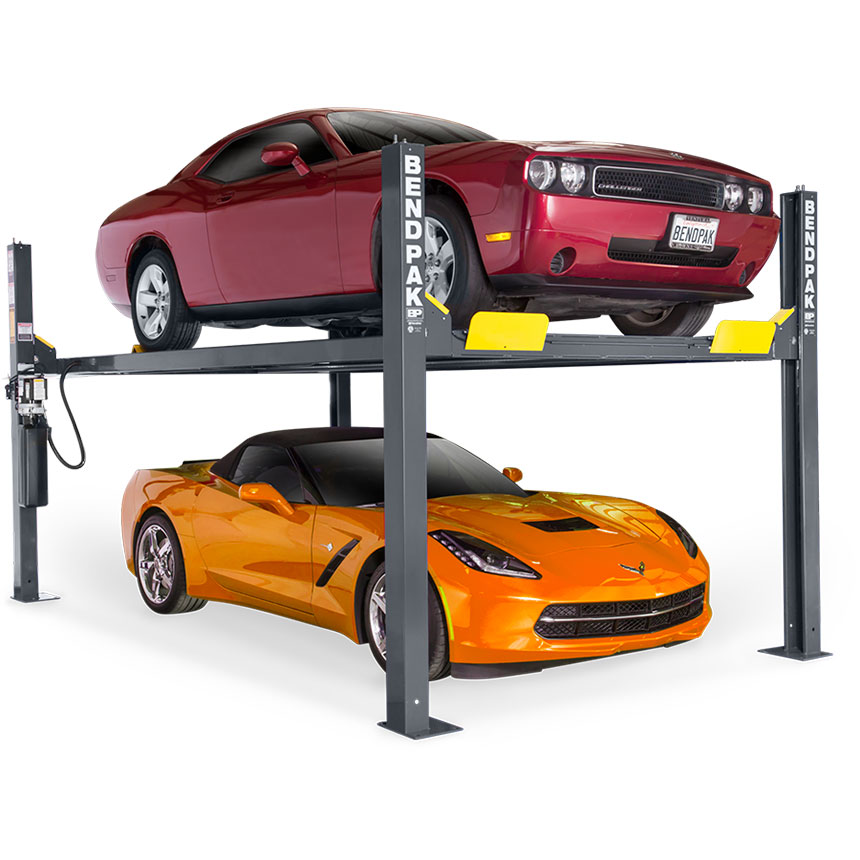

Bendpak 9,000-lb. 4-Post Standard Width Car Lift HD-9

BendPak

SKU #1700441
Availability: Out of Stock
Price: $5,295.00
$5,295.00
FREE Shipping in Contiguous USA*.
All other will be contacted with shipping costs
before order is processed.


The space-saving design of the 9,000 lb. capacity HD-9 is ideal for vehicle storage in residential garages or commercial buildings. It also doubles as a great service lift for smaller shops who still want to do a big business. No special foundation is required and the installation is a cinch.

andnbsp;

Features:
  • 9000 pound lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways include rail-kit for optional accessories
  • Electric/hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1-1/4" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • ETL Approved
Specs:
  • Lifting Capacity: 9,000 lbs. / 4,082 kg
  • Overall Width: 110-1/4" / 2,800mm
  • Outside Length: 174" /4,420mm
  • Overall Length: 200" /5,080mm
  • Height of Columns: 88" /2,235mm
  • Runway Min. Height: 4-1/2" /114mm
  • Max Rise: 70" / 1,778 mm
  • Max Lifting Height: 74-1/2" /1,892mm
  • Width Between Posts: 100-1/4" /2,555mm
  • Runway width: 19" / 483mm
  • Width Between Runways: 37-1/2" - 44-3/8" / 952 - 1,127 mm
  • Length of Runways: 164" / 4.166 mm
  • Min. Wheelbase @ Rated Capacity: 115" /2,921mm
  • Min. Wheelbase @ 75% Capacity: 100" /2,540mm
  • Min. Wheelbase @ 50% Capacity: 85" /2,159mm
  • Min. Wheelbase @ 25% Capacity: 70" /1,778mm
  • Locking Positions: 12
  • Lock Spacing: every 4" /102mm
  • Lifting Time: 45 sec.
  • Motor: 220 VAC / 60 Hz / 1 Ph

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

*Shipping Information:

  • Additional $80 charge for residential delivery.
  • Forklift required to remove Lift from delivery truck.
  • $100 Limited Access Fee for deliveries to schools.
Ships by Ground Only from manufacturer via Truck Freight. Next Day and Second Day Air Shipping Not Available.
