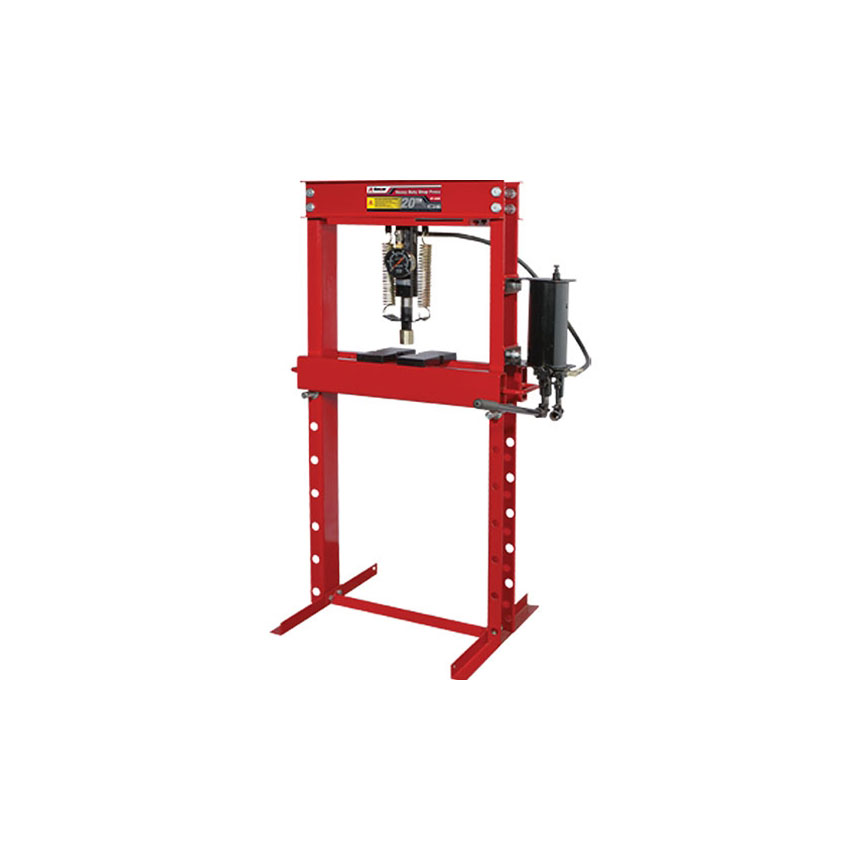

Ranger 20-Ton Commercial-Grade Hydraulic Shop Press RP-20HD

Shop Equipment

SKU #1801406
Availability: In Stock
Price: $875.00
$875.00

FREE Shipping
to a commercial business address within the 48 Contiguous United States.


Delivers up to 40,000 lbs. of Pressure to Satisfy All Your Pressing Needs

This robust 20 ton press was designed for heavy use in repair shops, but works just as well in your garage. Ideal for the removal and installation of gears, bushings and bearings, the RP-20HD also excels at bending, straightening and flattening. The applications are truly endless.

  • Ideal for pressing bearings, U-joints, etc.
  • Hydraulic cylinder moves laterally for better versatility
  • Integrated 4" diameter 20-ton pressure gauge
  • Independent two-speed hydraulic pump for maximum performance
  • Adjustable table height
  • Heavy steel construction
  • Includes 2 heavy-duty press plates

Specifications

  • Capacity: 40,000 lbs. / 18,144 kg
  • Overall height: 60-1/4" / 1,530 mm
  • Overall width: 37" / 940 mm
  • Inside width between rails: 24" / 610 mm
  • Adjustable table height: 7-1/2" – 36-1/4" / 190 mm x 921 mm
  • Base dimensions: 27-1/4" x 26" / 692 mm x 660 mm
  • Cylinder stroke: 5-1/2" / 140 mm
  • Shipping weight: 298 lbs. / 135 kg
  • Shipping dimensions: 19" x 63" x 23" / 483 mm. x 1,600 mm x 584 mm

*Shipping Information:

  • Forklift required at time of delivery.
  • If no Forklift is available, you can request a liftgate for an additional charge.
  • $100 Limited Access Fee for deliveries to schools.
Ships by Ground Only from manufacturer via Truck Freight. Next Day & Second Day Air Shipping Not Available.
