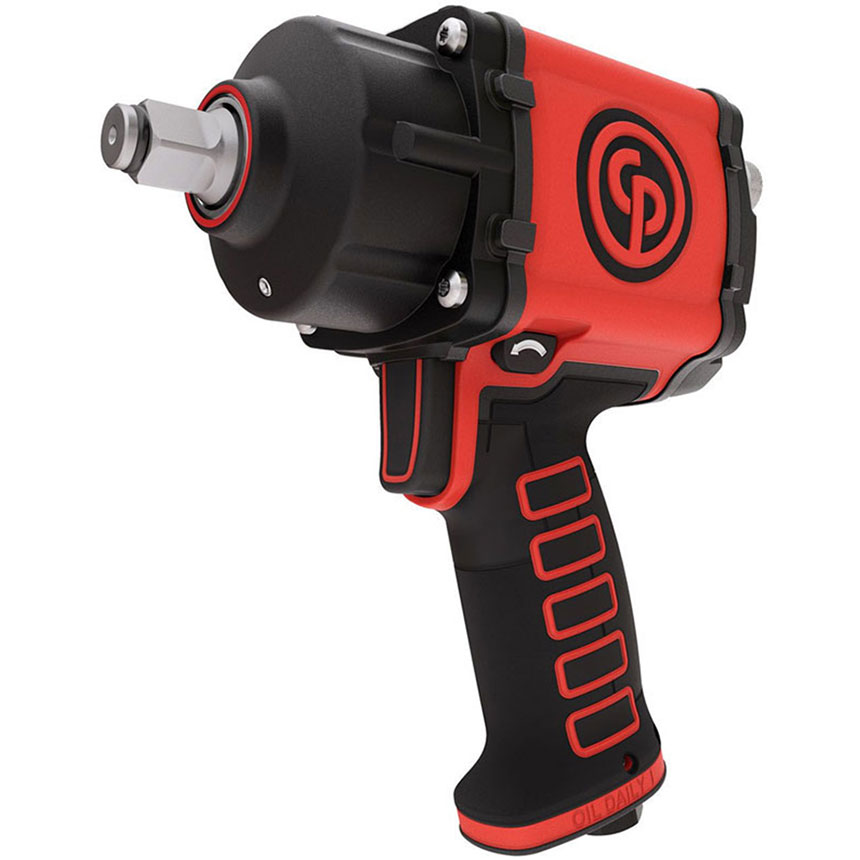

Chicago Pneumatic 1/2" Impact Wrench - CP7755

Air Tools

SKU #1814897
Availability: In Stock
Price: $429.95
$429.95

No more guessing, get the power you need! - Complete power control

  • The best and the most adjustable power control for pneumatic tools 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 and 100% of maximum torque
  • Twin hammer mechanism
  • Bumpers all over the tool
  • Bi-material and bi-color handle and trigger
  • Friction ring socket retainer
  • One hand reverse - New Side2Side system
  • Composite motor housing

Specifications

  • Model: CP7755
  • Part number: 8941077550
  • Actual air consumption: 108 l/mn: 3.9 cfm
  • Air inlet thread size: 1/4 "
  • Blows per minute: 1200
  • Working Torque Range (fwd): 80 - 575 Nm / 59 - 425 ft.lbs
  • Box dimensions: 272x209x95 mm: 10,7x8,2x3,7 "
  • Clutch type: Twin hammer
  • Free speed: 7700 rpm
  • Free speed air consumption: 5.6 cfm
  • Handle type: Pistol
  • Height: 7.83 "
  • Length: 6.65 "
  • Maximum Torque (fwd): 1080 Nm / 796 ft.lbs
  • Maximum Torque (reverse): 1300 Nm / 960 ft.lbs
  • Min. hose size: 10 mm: 3/8 "
  • Net weight: 1.85 kg: 4.0 lb
  • Power/weight ratio: 702 Nm/kg / 234 ft.lb/lb
  • Side to center: 38 mm / 1-1/2 "
  • Socket retainer: Friction ring
  • Sound Power: 105 db(A)
  • Sound pressure: 94 db(A)
  • Sound uncertainty: 3 db(A)
  • Square drive: 12.7 mm
  • Vibration: 8.5 m/s¬≤
  • Vibration ISO: ISO-28927-2
  • Vibration uncertainty (K): 3.4 m/s¬≤
  • Width: 76 mm / 3 "

*Final torque must be applied manually using a calibrated torque wrench
